Overview

In the pharmaceutical industry, and many other fields that rely heavily on data reporting, there is often a need to create figures and tables with specific graphical arrangements. These could be titles, subtitles, captions, footnotes, and other text elements that provide important context to the data being shown.

However, creating the headers and footers etc. and correctly positioning them around the output can be challenging, often requiring fine-tuning. This can be time-consuming and can lead to inconsistencies in the way the figures and tables are presented across different projects.

gridify builds on the base R grid package and makes it easy to add flexible and customizable information around a figure or table using a pre-defined or custom layout. The gridify package works with all of the following input types, creating consistency when using various different inputs:

grob, gtable, ggplot, flextable, gt, base R plots (by formula)
Whilst rtables are not directly supported, we can use rtables with gridify by first converting them to flextable.

As gridify is based on the graphical tool grid, any figure or table inputs are converted to a grob object in gridify and the result of using gridify is always a graphical image.

Installation

You can install the newest release version from CRAN:

install.packages("gridify")

Or you can install the newest development version from Pharmaverse GitHub (example):

# install.packages("remotes")
remotes::install_github("pharmaverse/gridify", build_manual = TRUE)

Example

The workflow of the package is as follows:

1. Create your object (ggplot, gt etc.)
2. Choose a layout (predefined or custom). Use get_layouts() to see the predefined options
3. Use gridify() to create a gridify object
4. Print the gridify object to see empty cells
5. Use set_cell() to fill in the various text elements in the layout (headers, footers etc.)

The following example uses a table created by the gt package and the gridify layout pharma_layout_base().

library(gridify)
# install.packages("gt")
# gt needs gtable
# install.packages("gtable")
library(gt)
# (to use |> version 4.1.0 of R is required, for lower versions we recommend %>% from magrittr)

tab <- gt::gt(head(mtcars, n = 10))  |>
  gt::tab_options(
    table.width = gt::pct(100),
    data_row.padding = gt::px(10),
    table_body.hlines.color = "white",
    table.font.size = 12
  )

# Use `gridify()` to create a `gridify` object
gridify_object <- gridify(
  object = tab,
  # Choose a layout (predefined or custom)
  layout = pharma_layout_base(
    margin = grid::unit(c(0.5, 0.5, 0.5, 0.5), "inches"),
    global_gpar = grid::gpar(fontfamily = "serif", fontsize = 10)
  )
)
# Print the `gridify` object to see empty cells
gridify_object
# Use `set_cell()` to fill in the various text elements in the layout (headers etc.)
gridify_object_fill <- gridify_object |>
  set_cell("header_left_1", "My Company") |>
  set_cell("header_left_2", "<PROJECT> / <INDICATION>") |>
  set_cell("header_left_3", "<STUDY>") |>
  set_cell("header_right_1", "CONFIDENTIAL") |>
  set_cell("header_right_2", "<Draft or Final>") |>
  set_cell("header_right_3", "Data Cut-off: YYYY-MM-DD") |>
  set_cell("output_num", "<Table> xx.xx.xx") |>
  set_cell("title_1", "<Title 1>") |>
  set_cell("title_2", "<Title 2>") |>
  set_cell("title_3", "<Optional Title 3>") |>
  set_cell("by_line", "By: <GROUP>, <optionally: Demographic parameters>") |>
  set_cell("note", "<Note or Footnotes>") |>
  set_cell("references", "<References:>") |>
  set_cell("footer_left", "Program: <PROGRAM NAME>, YYYY-MM-DD at HH:MM") |>
  set_cell("footer_right", "Page xx of nn") |>
  set_cell("watermark", "DRAFT")

gridify_object_fill

print(gridify_object_fill)

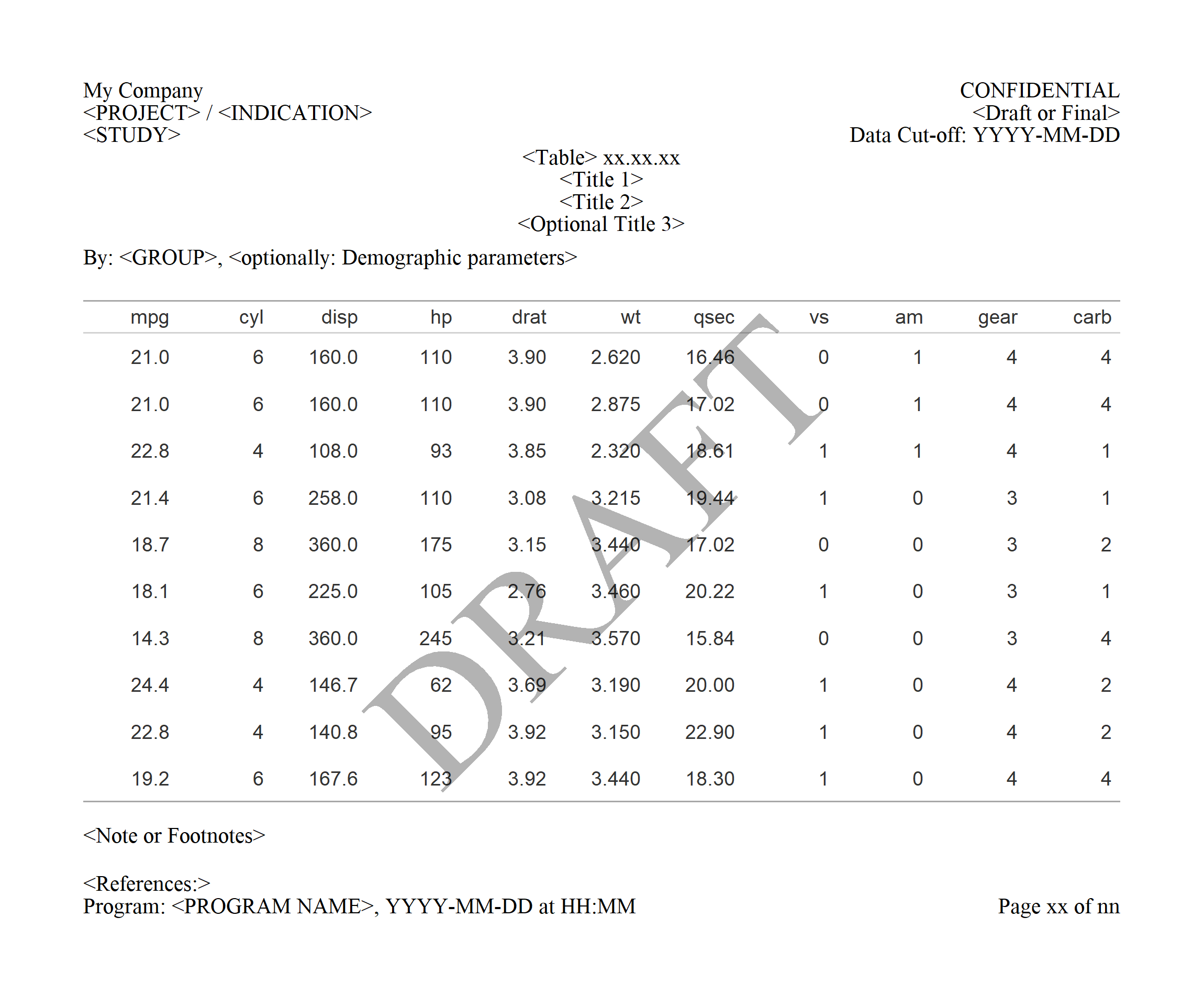

Note: Get the image using
export_to(gridify_object_fill, to = "mypng.png", res = 300, width = 2300, height = 1900)

Documentation Guide

For more information please visit the following vignettes:

• Getting Started vignette("gridify", package = "gridify") - A case study in how the above example is constructed.
• Simple Examples vignette("simple_examples", package = "gridify") - A showcase of implementations of gridify for the various possible inputs.
• Multi-Page Examples vignette("multi_page_examples", package = "gridify") - Showing how to use gridify in more complex situations e.g a for-loop for multiple results.
• Create Custom Layout vignette("create_custom_layout", package = "gridify") - An explanation on how to create a custom layout to use in gridify.
• Transparency of gridify vignette("transparency", package = "gridify") - How to extract the raw grid code to reproduce a gridify object.

Related packages

Other packages exist which add headers, footers, and other elements to figures and tables; most of the input classes to gridify already support these features. However, gridify was created not to supersede these, but to be used in conjunction with, in a way that is flexible for all use cases and consistent across various inputs.

Contributing

Interested in contributing? Check out the contributing guidelines, CONTRIBUTING.md. Please note that this project is released with a Code of Conduct, CODE_OF_CONDUCT.md. By contributing to this project, you agree to abide by its terms.

Acknowledgments

Along with the authors and contributors, thanks to the following people for their support:

Alberto Montironi, Jonathan Bleier, Cynthia McShea, Nils Penard, Oswald Dallimore, Laetitia Lemoine, Daniel Vicencio Perez, Richard Abdy
