Writing Custom Examples

Introduction

This vignette serves as a primer to help write detailed and consistent Examples Sections in function documentation using the custom rdx_roclet() , which lives in the {admiraldev} package functionality - please see demo_fun() for a dummy example and derive_extreme_records.R in admiral for an example of this in action. These examples are often beneficial for the more complex {admiral} functions to help answer questions like: “what does this function do?” or “how does this argument work?”.

In practice, the guidance shown below cannot always be applied to the letter, because each function and its context are different and may have varying requirements. As such, developers are encouraged to treat these directives heuristically and always apply their judgment when constructing Examples Sections.

How to use the @caption, @info and @code tags together in a “block”

The Examples Section should consist of a series of example blocks, usually made up of one call each to @caption, @info and @code. See the example below:

#' @examplesx
#'
#' @caption Showcasing the first functionality of `fun()` (`arg1`)
#'
#' @info This is the detailed text for the first example.
#'
#' @code
#'
#' fun(arg1 = TRUE)
#'
#' @caption Showcasing the second functionality of `fun()` (`arg2`)
#'
#' @info This is the detailed text for the first example.
#'
#' @code
#'
#' fun(arg2 = FALSE)

Within each block:

• The @caption tag should be used to provide a brief description of the example. This is the text which will show up in the table of contents on the right hand side of the function documentation. If possible and/or relevant, the text should specify which argument(s) are being showcased in that example.
• The @info tag should be used to provide a more detailed description of the example. If relevant, it should contain some context behind the example (i.e.  why this may be a relevant scenario to consider).
• The @code tag should be used to provide the code for the example. The code should be as self-contained as possible. The dataset/object being created should be printed at the end of the section.

Note that a more complex block may also have multiple @info and@code sections after the @caption if it is particularly involved.

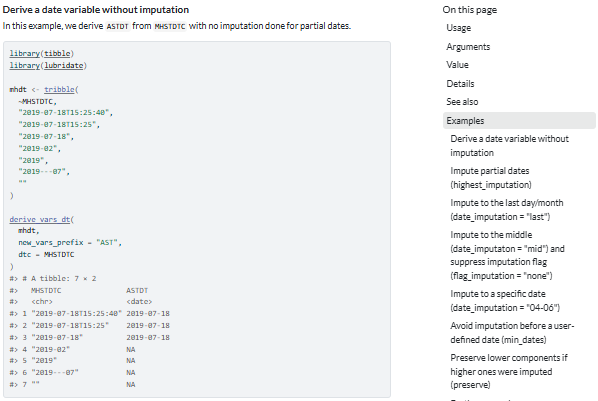

Here is what a block and table of contents look like (taken from admiral::derive_vars_dt().

How to sequence your blocks

Successive example blocks should build in complexity. The first examples should showcase the most “minimal” execution of the function, with only the required arguments being triggered and the default values discussed. The data in these examples should be as concise as possible and may not be ADaM compliant, e.g., STUDYID may not be included or AVISITN may be present without AVISIT.

Later blocks should then bring in one/a few more arguments at a time as the use-case becomes more involved. If possible, they should build on top of earlier blocks (i.e. use the same data but changing the scope of the function call to add complexity), but if this is not possible, then new scenarios can be considered.

As mentioned previously, all example blocks should answer questions like “what does this function do?” or “how does this argument work?”.

Data sections

If all examples can be run on the same/similar data, you may wish to (optionally) include a “Data setup” block at the start of the Examples Section to create the dummy dataset(s) that can then be used in each block. Please see derive_summary_records() as an example.
