Create a gridifyLayout

Source: R/gridify-classes.R
gridifyLayout.Rd

Function for creating a new instance of the gridifyLayout class.

Usage

gridifyLayout(
  nrow,
  ncol,
  heights,
  widths,
  margin,
  global_gpar = grid::gpar(),
  adjust_height = TRUE,
  object,
  cells
)

Arguments

nrow

An integer specifying the number of rows in the layout.

ncol

An integer specifying the number of columns in the layout.

heights

A call to grid::unit() specifying the heights of the rows.

widths

A call to grid::unit() specifying the widths of the columns.

margin

A grid::unit() specifying the margins around the object. Must be a vector of length 4, one element for each margin, with values in order for top, right, bottom, left.

global_gpar

A call to grid::gpar() specifying the global graphical parameters. Default is grid::gpar().

adjust_height

A logical value indicating whether to automatically adjust the height of the object to make sure all of the text elements around the output do not overlap. This only applies for rows with height defined in cm, mm, inch or lines units. Default is TRUE.

object

A call to gridifyObject specifying the row and column location of the object.

cells

A call to gridifyCells listing out the text element cells required for the layout.

Value

A new instance of the gridifyLayout class.

See also

gridifyCells(), gridifyCell(), gridifyObject()

Examples

layout <- gridifyLayout(
  nrow = 3L,
  ncol = 1L,
  heights = grid::unit(c(0.15, 0.7, 0.15), "npc"),
  widths = grid::unit(1, "npc"),
  margin = grid::unit(c(t = 0.1, r = 0.1, b = 0.1, l = 0.1), units = "npc"),
  global_gpar = grid::gpar(),
  adjust_height = FALSE,
  object = gridifyObject(row = 2, col = 1),
  cells = gridifyCells(
    title = gridifyCell(row = 1, col = 1),
    footer = gridifyCell(row = 3, col = 1)
  )
)

# (to use |> version 4.1.0 of R is required, for lower versions we recommend %>% from magrittr)
library(magrittr)

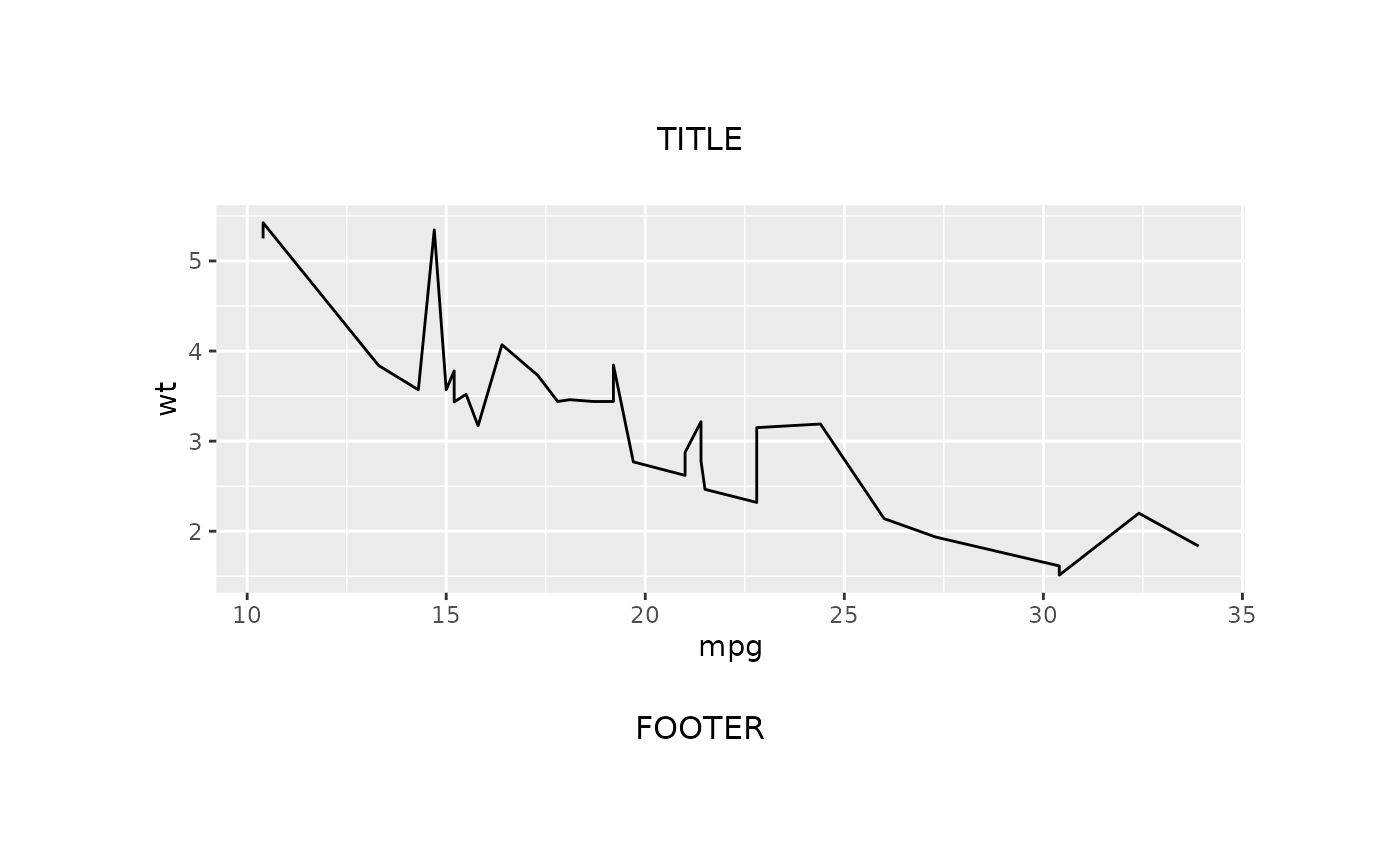

gridify(
  object = ggplot2::ggplot(data = mtcars, ggplot2::aes(x = mpg, y = wt)) +
    ggplot2::geom_line(),
  layout = layout
) %>%
  set_cell("title", "TITLE") %>%
  set_cell("footer", "FOOTER")
#> gridifyClass object
#> ---------------------
#> Please run `show_spec(object)` or print the layout to get more specs.
#>
#> Cells:
#>   title: filled
#>   footer: filled


new_layout <- function(
    margin = grid::unit(c(t = 0.1, r = 0.1, b = 0.1, l = 0.1), units = "npc"),
    global_gpar = grid::gpar()) {
  gridifyLayout(
    nrow = 4L,
    ncol = 1L,
    heights = grid::unit(c(3, 0.5, 1, 3), c("cm", "cm", "null", "cm")),
    widths = grid::unit(1, "npc"),
    global_gpar = global_gpar,
    margin = margin,
    adjust_height = FALSE,
    object = gridifyObject(row = 3, col = 1),
    cells = gridifyCells(
      title = gridifyCell(row = 1, col = 1, text = "Default Title"),
      subtitle = gridifyCell(row = 2, col = 1),
      footer = gridifyCell(row = 4, col = 1)
    )
  )
}

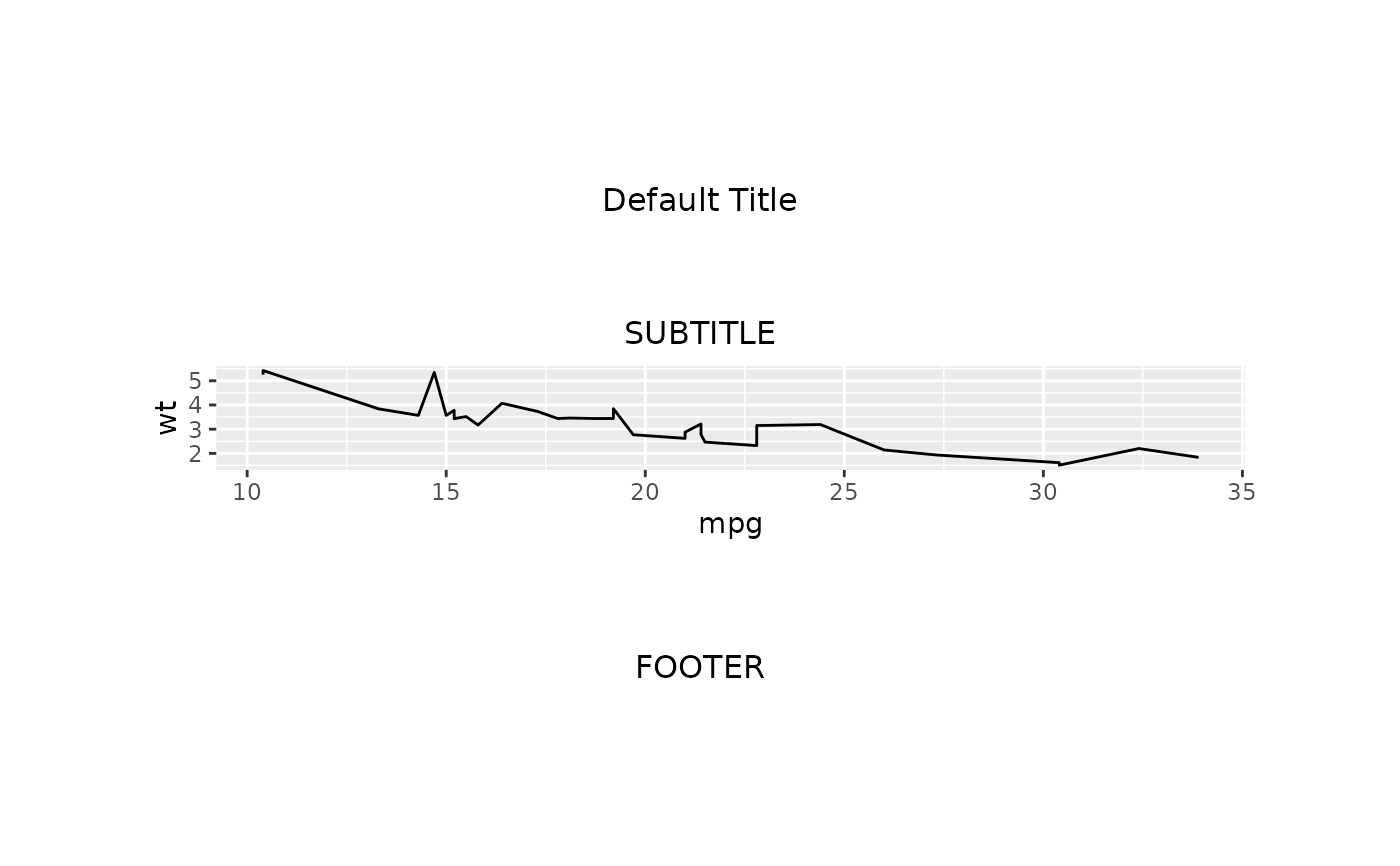

gridify(
  object = ggplot2::ggplot(data = mtcars, ggplot2::aes(x = mpg, y = wt)) +
    ggplot2::geom_line(),
  layout = new_layout()
) %>%
  set_cell("subtitle", "SUBTITLE") %>%
  set_cell("footer", "FOOTER")
#> gridifyClass object
#> ---------------------
#> Please run `show_spec(object)` or print the layout to get more specs.
#>
#> Cells:
#>   title: filled
#>   subtitle: filled
#>   footer: filled
